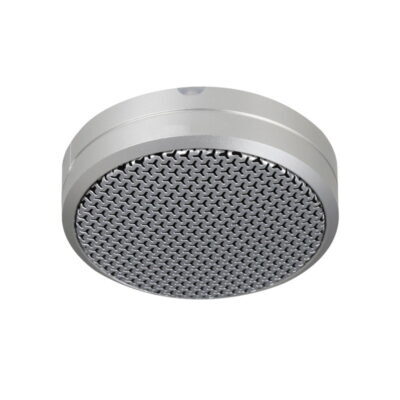

High Fidelity Surveillance Microphone (Aluminium) - VSAMICB2
Sale!
High Fidelity Surveillance Microphone (Aluminium) - VSAMICB2 - Image 2

High Fidelity Surveillance Microphone (Aluminium) – VSAMICB2

Guest Price – Login to see Member Pricing

Original price was: $141.57.Current price is: $119.79.

High Fidelity Surveillance Microphone (Aluminium)

SKU: VSAMICB2 Categories: ,
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

Add high quality audio to any surveillance installation with the VSAMICB2. This microphone enables audio recording and features adjustable sensitivity, DNR and auto gain control.

Product features:
• 85dB signal noise reduction for low background noise
• 1 ~ 150m² effective range
• Adjustable sensitivity; audio gain control
• Dynamic range up to 106dB (1KHz at Max dB SPL)
• Cascading support for multiple audio outputs
• Stylish aluminium casing
• Ideal for ceiling & wall mounting; for indoor use only

* Legality of voice recording in Australia varies by state and may require knowledge & consent from all parties. Refer to individual state laws for details.

Specification

Register for Member Pricing

Bandwidth Frequency
20Hz ~ 20kHz

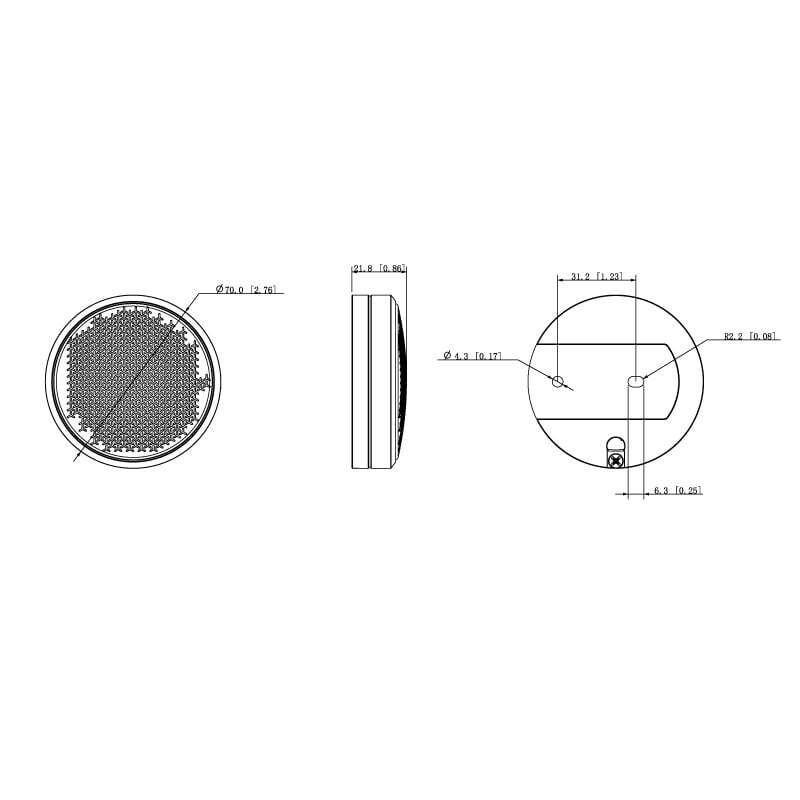

Dimensions
?70 x 21mm

Direction
Omni-directional

Dynamic Range
106dB (1KHz at Max dB SPL)

Ingress Protection
N/A

Interface Ports
–

Material
Aluminium

Max. Sound Pressure
120dB SPL (1KHz, THD 1%)

Microphone
Electret Condenser Microphone

Operation Area
1 ~ 150m²

Operation Environment
-25°C~+70°C

Output Impedance
25? (unbalanced)

Output Signal Amplitude
2.5Vpp/-25dB

Power Consumption
0.72W (60mA)

Power Supply
12VDC (9 ~ 18V)

Sensitivity
-38dB

Signal-to-Noise Ratio
85dB (1m 40dB sound source SPL) / 52dB (10m 45dB sound source SPL) / 1kHz at 1Pa

Weight
0.11kg



Please download documents from the following links:
