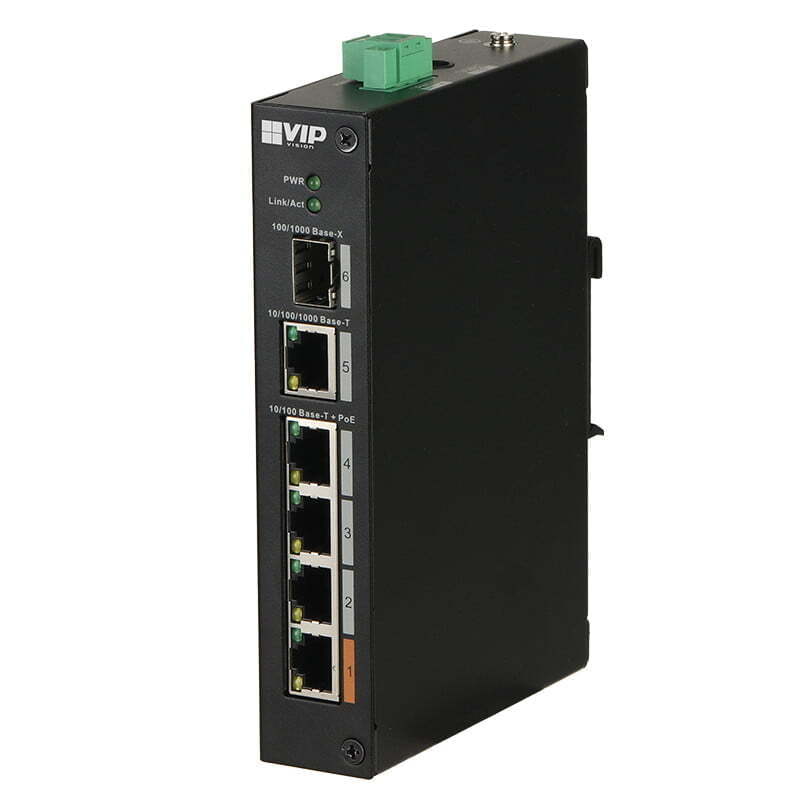

Description
The VSPOE-SW4H is a DIN rail mountable, fast PoE switch in 4 ports. It is ideal for building secondary networks – providing data and power to devices on the edge of a network, such as CCTV cameras, wireless access points, IP telephones, network access control systems and more.
• 3 x Fast PoE+ device ports with 100Mbps per port
• 1 x Hi-PoE device port with 100Mbps per port
• 1000Mbps Gigabit RJ45 & SFP fibre uplink ports
• Total PoE power load up to 96W
• Unmanaged switch for plug and play applications
• DIN rail mountable for neat rackmount installations
• Professional appearance full metal enclosure
• Lightning overvoltage protection up to 6kV
Specification
Device Ports
4 x 10/100 Base-T (PoE power supply ports)
DHCP
N/A
Dimensions
150 x 108 x 30mm
Exchange Mode
Store & forward
Extend Mode
N/A
Flow Control
N/A
Input Power
48 ~ 57VDC
Lightning Protection
Common Mode: 6KV / Differential Mode: 4KV
LLDP
N/A
MAC Address Capacity
8K
Mounting Options
DIN rail
Network Management
N/A
Network Time Protocol
N/A
Operating Environment
-30°C~65°C / RH5%~95%
Packet Forwarding Rate
3.57Mpps
PoE
Yes
PoE Management
N/A
PoE Protocol
PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE
Port Aggregation
N/A
Port Mirroring
N/A
Ports
4 ports
Quality of Service
N/A
Security Features
N/A
Spanning Tree Protocol
N/A
Speed
Fast 10/100
Switch Management
Unmanaged
Switch Power Load
Ports 1: ?60W / Port 2-4: ?30W (Total: ?60W)
Switching Capacity
6.8Gbps
System Maintenance
N/A
Uplink Ports
1 x 1000 Base-X / 1 x 10/100/1000 Base-T
Virtual LAN
N/A
Weight
0.44kg
Download the brochure from the link below.
Brochure
Please ask your product question below:
VIP Vision 4-port Unmanaged Fast Hi-PoE DIN Rail Ethernet Switch – VSPOE-SW4H
$141.57Original price was: $141.57.$110.11Current price is: $110.11.4-port Unmanaged Fast PoE Ethernet Switch
Available on back-order
Description
The VSPOE-SW4H is a DIN rail mountable, fast PoE switch in 4 ports. It is ideal for building secondary networks – providing data and power to devices on the edge of a network, such as CCTV cameras, wireless access points, IP telephones, network access control systems and more.
• 3 x Fast PoE+ device ports with 100Mbps per port
• 1 x Hi-PoE device port with 100Mbps per port
• 1000Mbps Gigabit RJ45 & SFP fibre uplink ports
• Total PoE power load up to 96W
• Unmanaged switch for plug and play applications
• DIN rail mountable for neat rackmount installations
• Professional appearance full metal enclosure
• Lightning overvoltage protection up to 6kV
Specification
Download the brochure from the link below.
Brochure
Please ask your product question below:
