VIP Vision 16-Port (100M) Managed Hi-PoE Ethernet Switch - VSPOE-SWA16C
Sale!

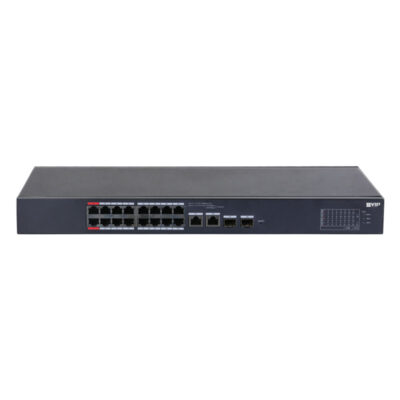

VIP Vision 16-Port (100M) Managed Hi-PoE Ethernet Switch - VSPOE-SWA16C - Image 2

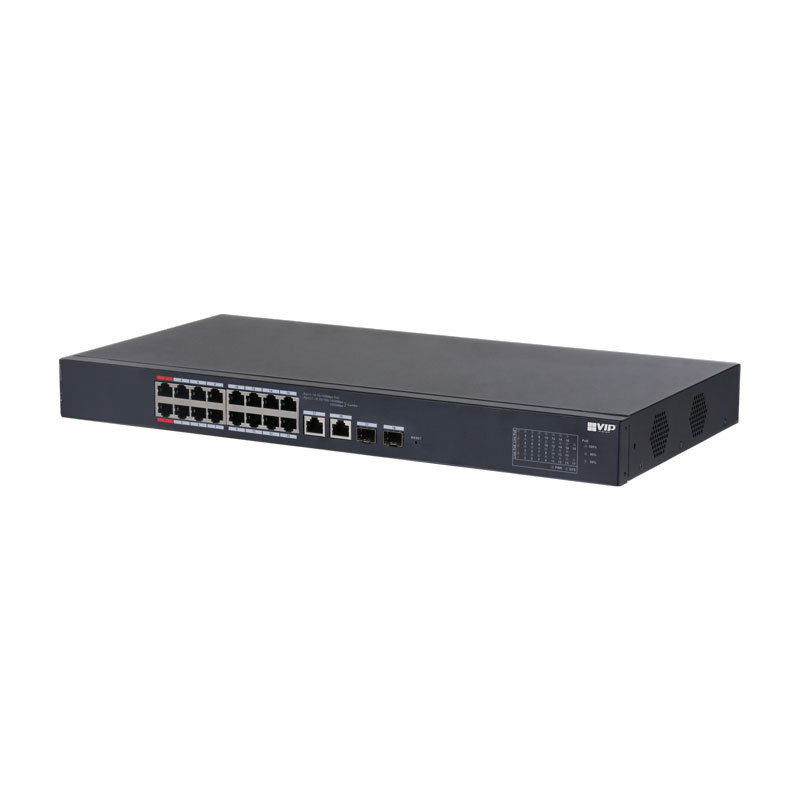

VIP Vision 16-Port (100M) Managed Hi-PoE Ethernet Switch - VSPOE-SWA16C - Image 3

VIP Vision 16-Port (100M) Managed Hi-PoE Ethernet Switch – VSPOE-SWA16C

Original price was: $385.00.Current price is: $290.40.

Versatile 16-port rackmount Hi-PoE switch with up to 90W per port, cloud-based management, and extended range support—perfect for powerful IP deployments

Available on back-order

SKU: VSPOE-SWA16C Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

16-Port Hi-PoE Rackmount Switch with Cloud Management and Extended Reach

The VSPOE-SWA16C is a powerful Layer 2 managed PoE switch, purpose-built for high-demand installations requiring flexible power delivery and advanced network control. With 16 PoE ports supporting PoE, PoE+, and Hi-PoE (up to 90W per port) and a total power budget of 240W, it’s ideal for powering a diverse range of high-consumption IP devices.

Offering cloud-based management via mobile, the switch allows for convenient remote configuration, including VLAN settings, QoS, and more. Its extend mode supports Ethernet cable runs up to 250 metres, simplifying long-distance deployments. Housed in a full-metal rackmount enclosure, it provides a professional finish and is equipped with 4kV lightning protection for added durability and uptime.

Register for Member Pricing

Specifications

Switch Specification
Ports
16 ports
Speed
Fast 10/100
Device Ports
16 x 10/100 Base-T (PoE power supply ports)
Uplink Ports
2 x 1000 Base-X / 2 x 10/100/1000 Base-T
Switching Capacity
7.2bps
Packet Forwarding Rate
5.36Mbps
Exchange Mode
–
Power over Ethernet
PoE
Yes
PoE Protocol
PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE (IEEE802.3bt)
Switch Power Load
Port 1-2: ?60W / Port 3-16: ?30W / Total: ?240W
Management
Switch Management
L2 Cloud Management
MAC Address Capacity
8K
Virtual LAN
802.1Q Standard VLAN
Network Time Protocol
N/A
Spanning Tree Protocol
STP / RSTP
Port Aggregation
Static link aggregation / LACP protocol
Port Mirroring
Many-to-one port mirroring
LLDP
Supports
DHCP
DHCP Client
Extend Mode
Up to 250m range at 10Mbps (port configurable via management interface)
Flow Control
Half-duplex based on back pressure type control; Full duplex based on PAUSE frame
Security Features
IP+MAC binding based on port; IEEE802.1x port authentication
System Maintenance
One-key recovery / Supports updated packet upload / System log
Quality of Service
High and low priority / WRR / 802.1P / DSCP / Support priority according to protocol
Network Management
WEB (HTTP and HTTPS protocol) / Support SNMP V1/V2/V3
PoE Management
PoE setting (real-time port consumption) / PoE event statistics / Green PoE
Environmental
Input Power
100 ~ 240VAC
Lightning Protection
Common Mode: 4kV / Differential Mode: 2kV
Mounting Options
Rackmount Tabs (1RU) / Desktop Mount
Operating Environment
-10° ~ 55°C / RH95% (max)
Weight
2.35kg
Dimensions

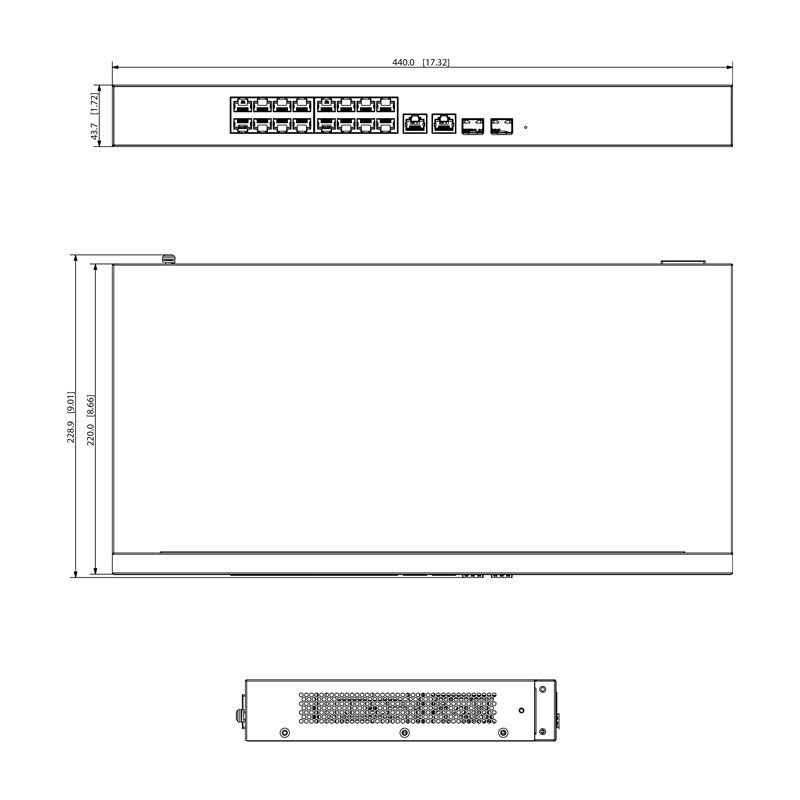

440 x 220 x 44mm
Warranty (Years)
4



Please download documents from the following links:

VSPOE-SWAC Series Brochure (PDF)
