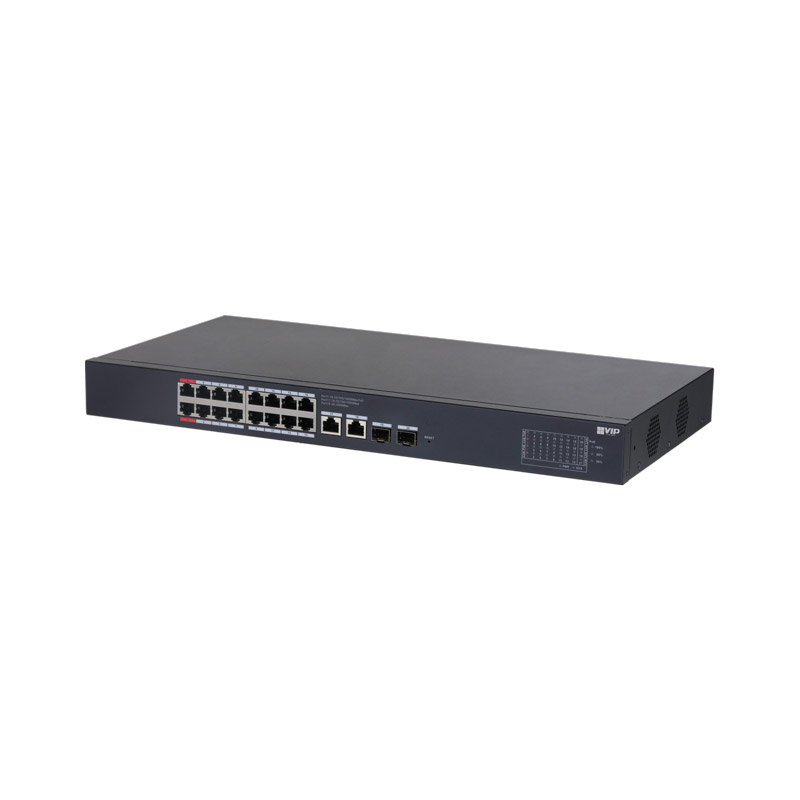

VIP Vision 16-Port 1000M Gigabit Managed Hi-PoE Ethernet Switch - VSPOE-SWB16C
Sale!
VIP Vision 16-Port 1000M Gigabit Managed Hi-PoE Ethernet Switch - VSPOE-SWB16C - Image 2
VIP Vision 16-Port 1000M Gigabit Managed Hi-PoE Ethernet Switch - VSPOE-SWB16C - Image 3
VIP Vision 16-Port 1000M Gigabit Managed Hi-PoE Ethernet Switch - VSPOE-SWB16C - Image 4
VIP Vision 16-Port 1000M Gigabit Managed Hi-PoE Ethernet Switch - VSPOE-SWB16C - Image 5
VIP Vision 16-Port 1000M Gigabit Managed Hi-PoE Ethernet Switch - VSPOE-SWB16C - Image 6

VIP Vision 16-Port 1000M Gigabit Managed Hi-PoE Ethernet Switch – VSPOE-SWB16C

Original price was: $464.75.Current price is: $332.75.

High-performance cloud-managed 16-port Gigabit PoE switch with real-time mobile monitoring, Layer 2+ management, 240W PoE budget, dual SFP uplinks, and a durable full-metal rackmount enclosure. Ideal for powering and managing modern surveillance and network deployments.

SKU: VSPOE-SWB16C Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

VSPOE-SWB16C Cloud-Managed 16-Port Gigabit PoE Switch

The VSPOE-SWB16C is a professional-grade 16-port Gigabit PoE switch engineered for high-powered surveillance networks and enterprise environments. With cloud management, real-time mobile monitoring, and Layer 2+ network control, it delivers exceptional flexibility and reliability for modern IP systems.

Designed to power demanding PoE devices, the switch provides 90W Hi-PoE on Ports 1–2 and 30W PoE+ on Ports 3–16, supported by a robust 240W total PoE budget. Dual Gigabit Base-T uplinks and dual SFP combo uplinks ensure scalable, high-speed network expansion. Built with a full-metal enclosure, rackmount tabs, and 4kV surge protection, the VSPOE-SWB16C is built for long-term stability in professional installations.

Product Features

  • 16 × Gigabit PoE+ ports for cameras and powered devices
  • High-power PoE 2.0 on Ports 1–2 (<=90W), PoE+ on Ports 3–16 (<=30W)
  • 2 × 1000Mbps Base-T uplink ports
  • 2 × 1000Mbps Base-X SFP uplink combo ports
  • 240W total PoE power budget
  • 40Gbps switching capacity for smooth, high?bandwidth traffic
  • Layer 2+ management including VLAN, QoS, STP, aggregation, and ACL
  • Cloud and mobile app monitoring for real-time visibility
  • Full-metal rackmount enclosure with 19” tabs included
  • 4kV surge protection for enhanced reliability
  • Operating temperature from –10 °C to +55 °C

Benefits

  • Centralised cloud management enables remote monitoring and configuration from any location.
  • High PoE output supports PTZ cameras, access points, and other high-draw devices.
  • Flexible uplink options allow scalable network expansion using copper or fibre.
  • Advanced Layer 2+ control improves traffic management, segmentation, and security.
  • Reliable performance with 40Gbps switching and store-and-forward architecture.
  • Enhanced protection with 4kV lightning resistance and robust metal construction.
  • Easy installation with desktop or rackmount options.
  • Wide temperature tolerance ensures dependable operation in harsh environments.
Register for Member Pricing

Specifications

Switch Specification
Ports
16 ports
Speed
Gigabit 10/100/1000
Management
L2 Managed
Device Ports
Port 1-16: 16 x 10/100/1000M Base-T (PoE)
Uplink Ports
Port 17-18: 2 x 10/100/1000M Base-T (uplink) / Port 19-20: 2 x 1000M Base-X (uplink) (combo)
Switching Capacity
40Gbps
Packet Forwarding Rate
29.76Mbps
Exchange Mode
Store & forward
Power over Ethernet
PoE
Yes
PoE Protocol
IEEE802.3af / IEEE802.3at / Hi-PoE / IEEE802.3bt
Switch Power Load
Port 1-2: ?90W / Ports 3-16: ?30W (Total: ?240W)
Management
Switch Management
Layer 2+ Management
MAC Address Capacity
8K
Virtual LAN
IEEE802.1q Standard VLAN / VLAN Amount: 4K
Network Time Protocol
Support
Spanning Tree Protocol
STP / RSTP / MSTP
Port Aggregation
Link Aggregation
Port Mirroring
Many-to-one port mirroring
LLDP
Support
DHCP
DHCP Client / DHCP Server / DHCP Snooping
Extend Mode
Support up to 250m at 10Mbps
Flow Control
Support IEEE 802.3x (full duplex flow control) and back pressure flow control (half duplex)
Security Features
User management, HTTPS, SSH, SNMP V1/V2/V3, ACL, 802.1x, Loop protection
System Maintenance
Configuration file upload/download, Supports updated packet upload , System log
Quality of Service
8 output queues for each port, Traffic shaping, port tag remarking, QoS based on CoS/DPL/PCP, QoS based on DSCP
Network Management
Web (http and https protocol), iLinksView, CLI; SNMP V1/V2C/V3
PoE Management
Power consumption management, Power on and power off, Power down for overload, Green PoE, Legacy support
Environmental
Input Power
100 ~ 240VAC
Lightning Protection
Common Mode: 4kV / Differential Mode: 2kV

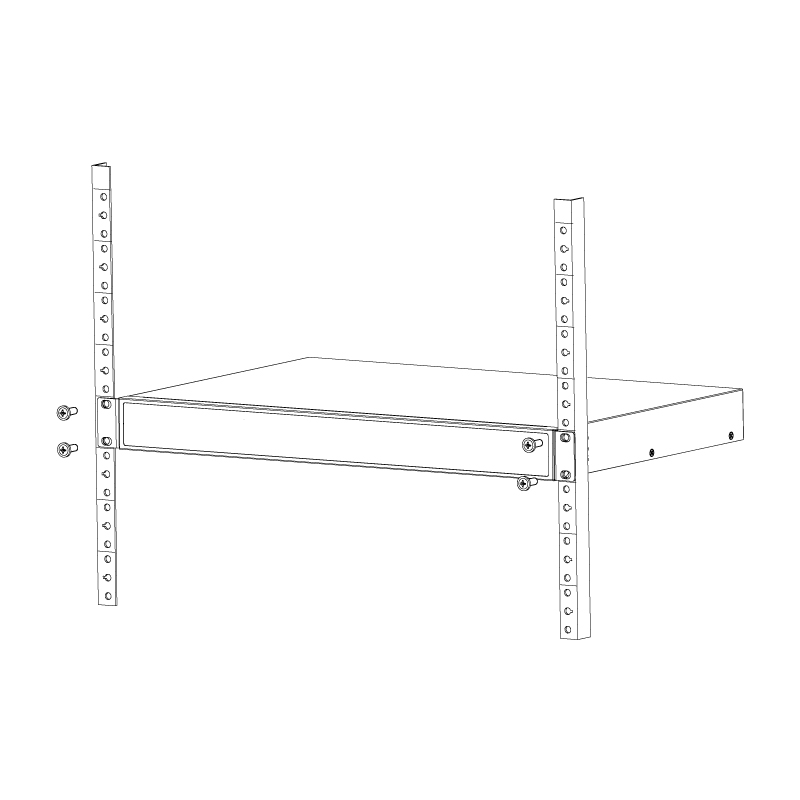

Mounting Options
Desktop mount & Rack mount tabs
Operating Environment
Operating Temperature –10 °C to +55 °C
Weight
2.37kg

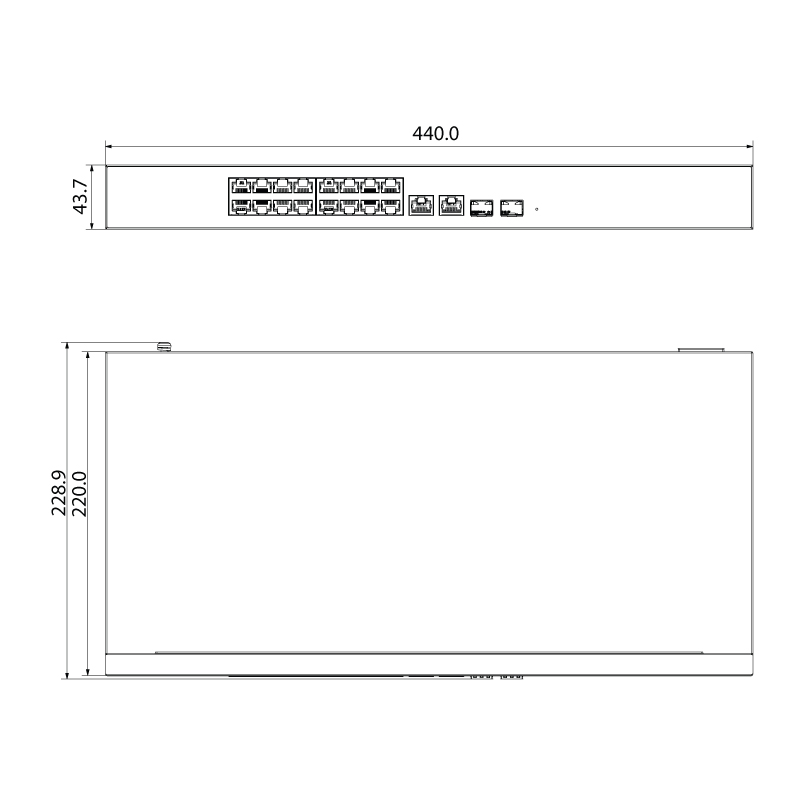

Dimensions
440 x 220 x 44mm
Warranty (Years)
4

Please download documents from the following links:

VIP Vision VSPOE-SWA Series Brochure (PDF)
